PS1 Memory Cards want pics of Colored Versions front + back

[s8n]

hi team , im looking to get a few PS1 / Playstation 1 Memory Cards but dont want a fake as they loose saves.

does anyone have pics of the Colored Versions ? front and back ....high resolution

if you've bought 1 from a reputable source and its Colored please post a pic or 2


s8n

[Luke]

I've got a red one, still unopened, in it's original packaging.

If you are looking to buy one, put this in the B/S/T thread.

[Krooner]

It was only the high capacity cards that lost saves, the 1MB standard ones were fine. If it's got that Sony imprint then you're good to go

[Mod_Man_Extreme]

I've got a red one, still unopened, in it's original packaging.

If you are looking to buy one, put this in the B/S/T thread.

I think he's looking for help on how to spot a fake.

Anyhow, just look at the card for the SONY imprint, and look through the clear plastic on the back for the SONY Logo on the flash chip.

[s8n]

I think he's looking for help on how to spot a fake.

exactly , well worded Extreme

i can get a few from Cash Converters and when received can compare them to the possible pic i may get from a member here if they dont match i can take them back.

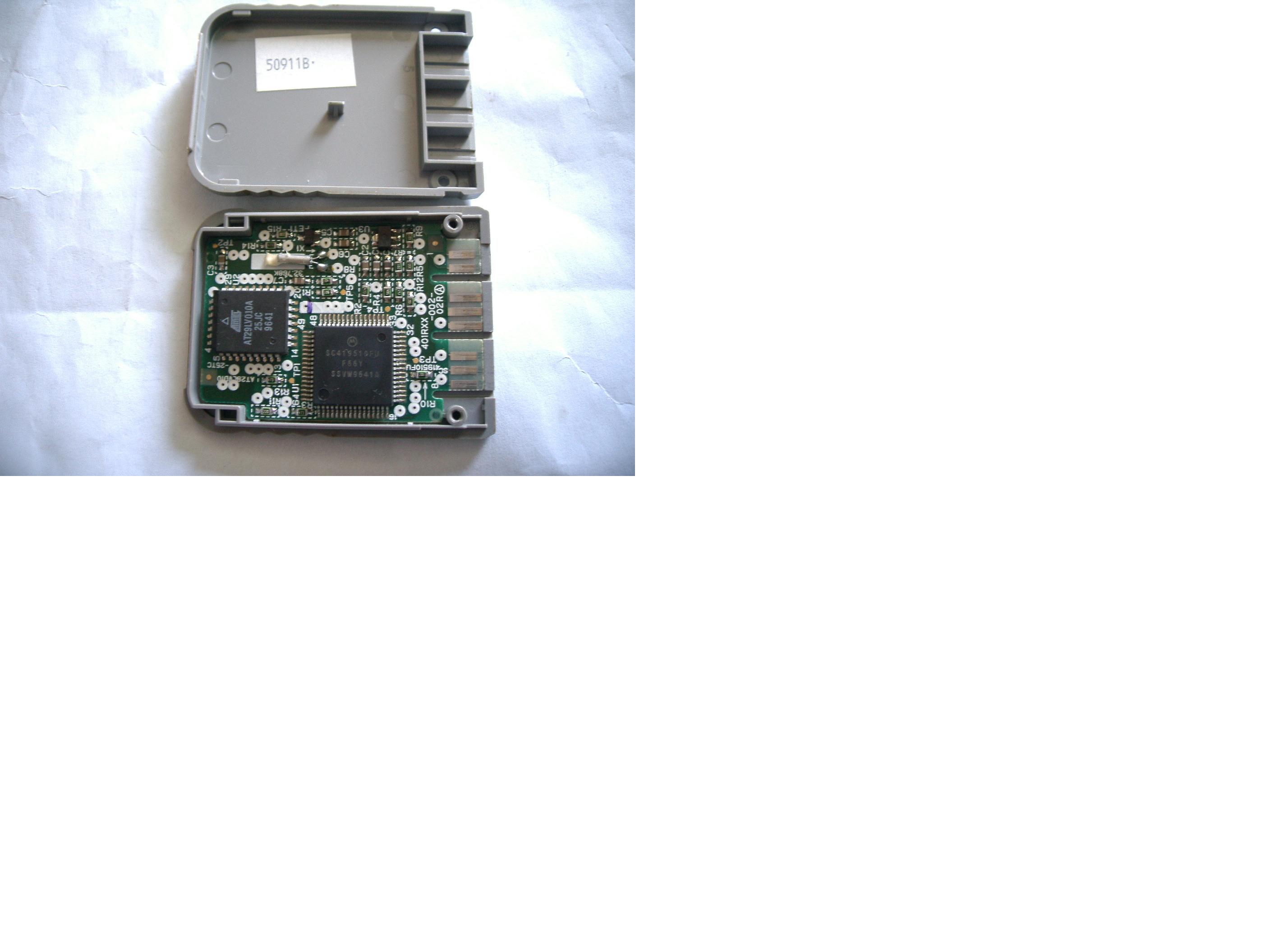

Here is a pic of the Original Grey opened opened up


[Mod_Man_Extreme]

Your second pic isn't loading.

[Betamax001]

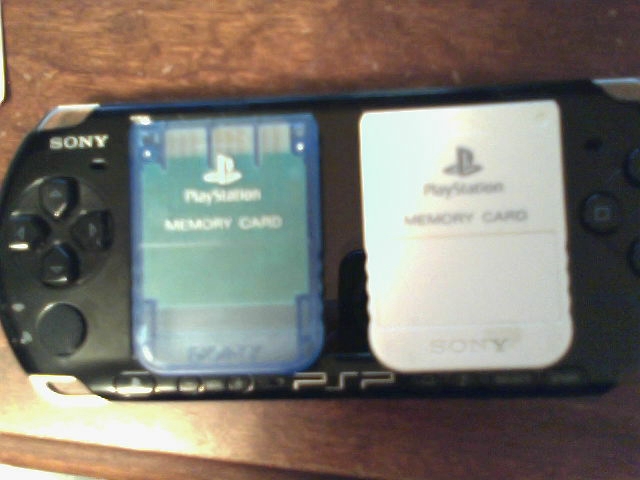

Front

2009-10-06 18-57-19.582.jpg (139 KiB) Viewed 2020 times

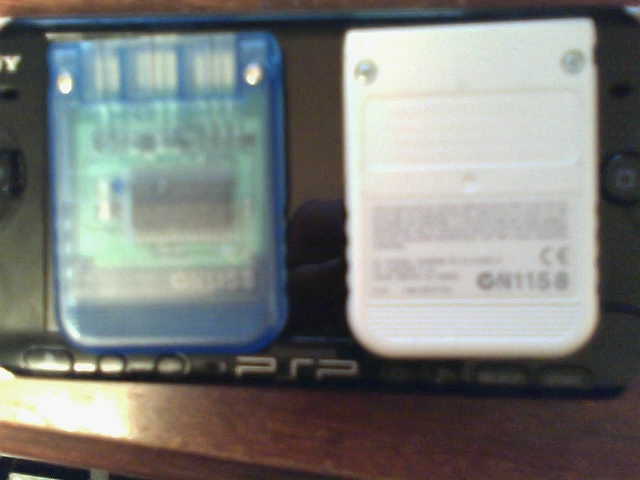

Back

2009-10-06 18-57-29.848.jpg (144.36 KiB) Viewed 2017 times

Front and back of my 2 PS1 memory cards. I'm not sure where my camera went so I took the picture with my webcam so I apologize for the low quality of the pics.

[Hobie-wan]

My clear blue card has the main IC marked Sony, but no crystal (the silver can).

I have a counterfeit clear neon green one that looks pretty good from the top with the printing and molding. However is has a winbond memory chip and a glop top for everything else. The FCC information is printed instead of a sticker, and the molded area that says memory card and lists the model number is a serif font instead of the same sans serif and the printed words "memory card" on the front.

I can add scans if really needed.

[s8n]

hiya Beta + Hobie thanks for your replies , the pics give me a general idea of Chip placement which is good. Hobie if you can please add a photo of the Official Clear Blue Card opened up so i can see the Chip , PCB , and other components that would be great.


i didnt expect such a great turnout in replies , thanks for that Racketboy Forums has a great community

[Hobie-wan]

Fake on the left. Notice how the font in the molded area at the top is completely the wrong font.

Real on the right AFAIK. I bought it second hand. Its a little hard to see, but the font in the molded area matches the words 'memory card' as printed on the top.

*edit

Just for grins I looked in my cheapo Gamestop/EB Games card I bought a long time ago. Its pretty similiar to the green knockoff. It has a glop top controller, an SST memory chip, and a few more surface mount caps.
