!* YO YO YO *! - Need pics of your AC/DC adapters!

[Hobie-wan]

I'll try to do some this weekend. I have an official Duo brick, so I can upgrade that one.

[hashiriya1]

If you need me to replace these pictures with better lighting I'll have to wait til morning. Let me know!]

Nope, they look perfect! Just let me know if that Japanese text on them is anything worth noting. Thanks!

Nothing important. The Japanese on top reads "AC Adapter" and on the bottom it says "Japan Home Electronics Company"

[o.pwuaioc]

This one is for SNES and Virtual Boy apparently, so its safe to say this came out after the Virtual Boy.

That's an SNES model 2 brick. I have it with mine (original brick that came with the system).

[Ziggy]

Maybe late model 1 SNESs also had that adapter? I don't know what year the Virtual Boy came out, and what year they stopped making model 1 SNESs.

Thanks everyone so far! Keep 'em coming!

[Hobie-wan]

I have 3 SNES bricks as I had noted in the SNES vertical line discussion thread. The original model with the cart lock came with a smoother one that doesn't mention the VB. The lockless one came with a smoother one that does mention the VB. The SNES mini came with a brick that's rougher and mentions the VB.

[Ziggy]

Bump. Updated first post with a list of consoles that I no longer need pictures of the adapters for. Saved all the pictures to my computer up to this point.

[DinnerX]

US GC

US N64

[flojocabron]

because I care.

Heres pics of US/NTSC Atari 2600, Atari 5200, and NES

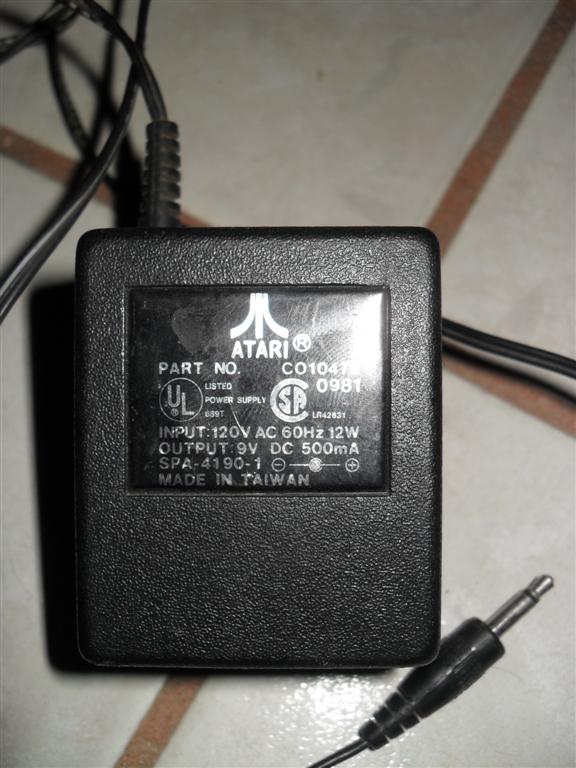

I think atari 2600 plugs are the same across the board.

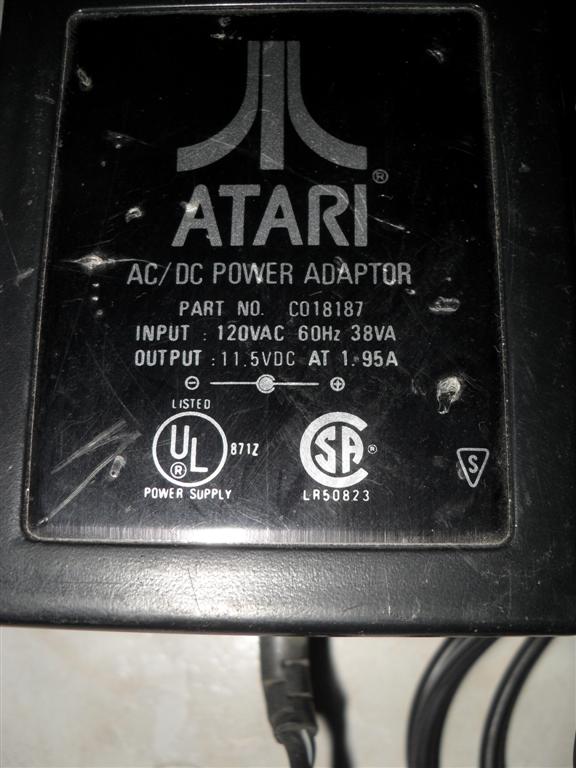

The 5200 plug that I have is for the 2 port console. I dont know if the 4 port plug is the same, Since there are some minor differences between the two. I havent seen any out in the wild yet.

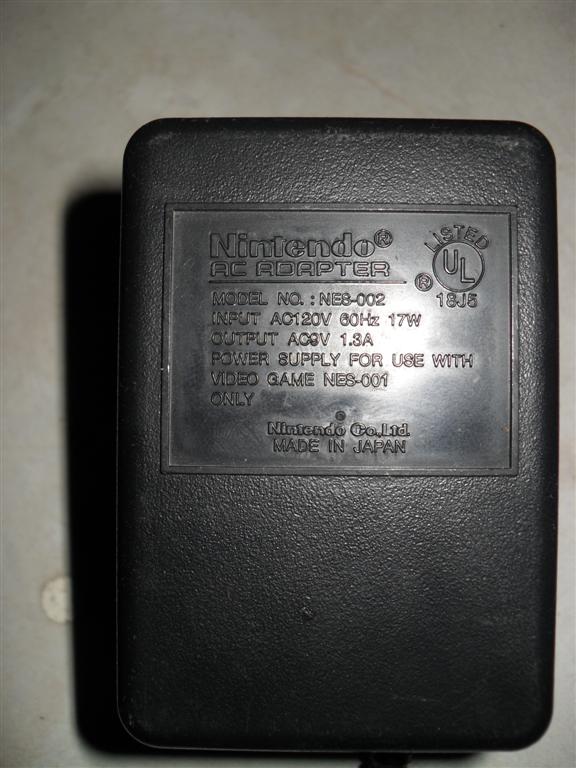

The NES plug is one that I use with my toploader. I dont know if its the original for it. They are also pretty much interchangable.

Most of my console collections I've completed piece by piece.

[flojocabron]

Heres some more for my peeps!

Now its for the NTSC/US TG-16, sega CDX, and PSOne

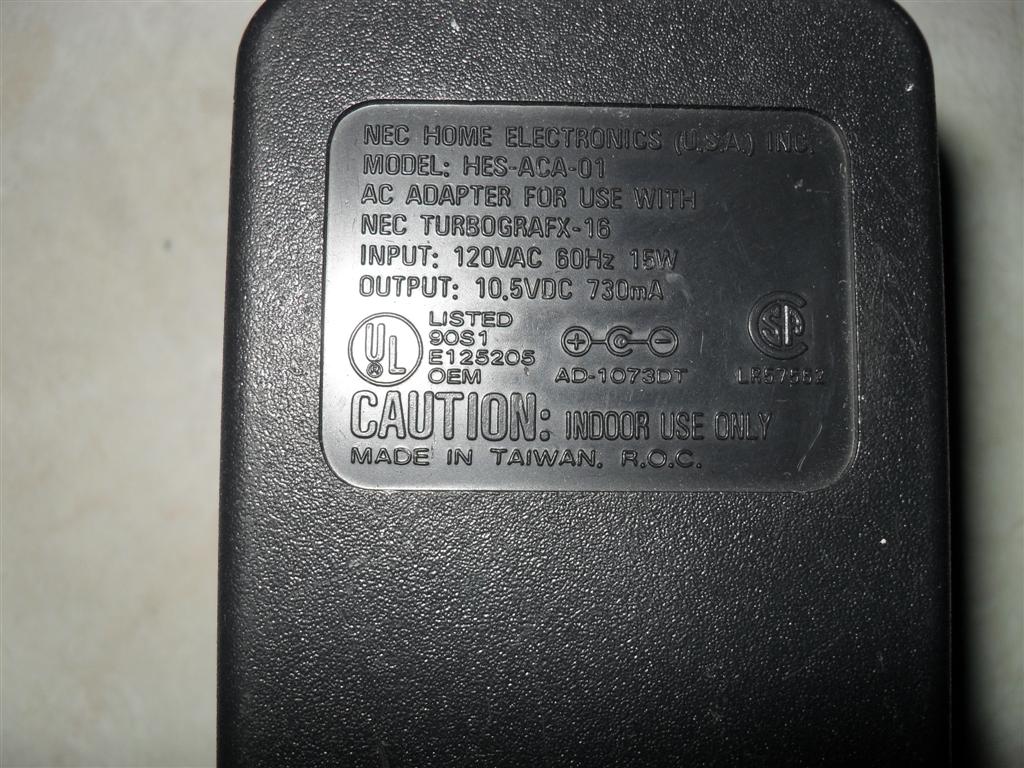

I'm not sure, I may have a second plug for the turbo. I think it has a sticker instead of moulded plastic.

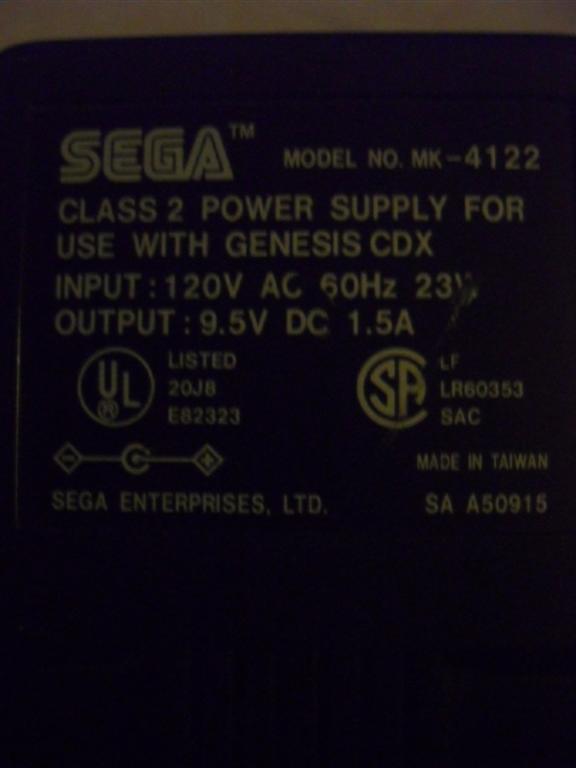

My CDX plug is kinda scruffed up. Its supposed to say 60Hz and 23W.

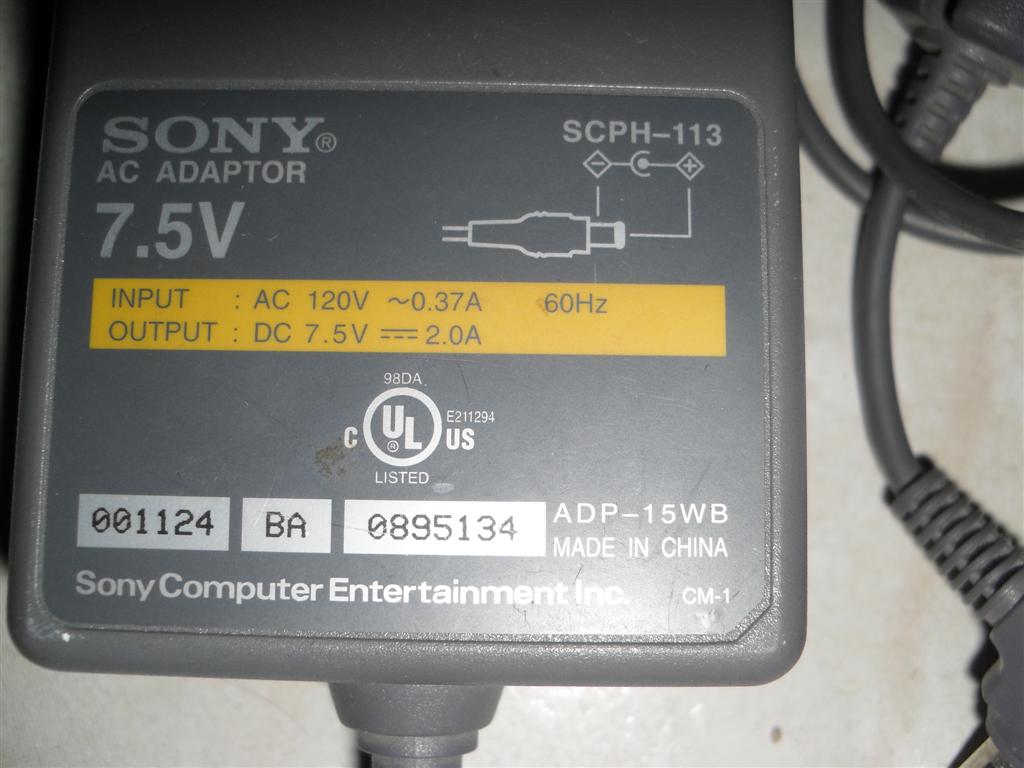

This is my plug for my psone. It still has the same model number (SCPH-113).I'm guessing its from a different lot/year. There are some different numbers there, but it shouldn't be a big deal.

I dont know where it is, but I also have another type of plug for the genesis. It came with a gamegear and it has different curves from the normal yellow tipped genesis plug.

[vlame]

how about proper replacements?
