My Other Rechargeable Gameboy Mods

by retroupgrade Wed Feb 17, 2016 12:19 am

You guys are lame. I got no responses on my last post on this topic. Maybe you guys will like these better! :D BTW, fun fact: the DMG has an EL backlight. It's not bad if you don't mind the high pitch whine sound.
Attachments
20160202_100340 %281%29.jpg
20160202_100340 %281%29.jpg (98.13 KiB) Viewed 2021 times
20160202_100456 %281%29.jpg
20160202_100456 %281%29.jpg (64.35 KiB) Viewed 2021 times
20160202_100433 %281%29.jpg
20160202_100433 %281%29.jpg (66.64 KiB) Viewed 2021 times
Last edited by retroupgrade on Wed Feb 17, 2016 9:14 pm, edited 1 time in total.
User avatar
prfsnl_gmr
Next-Gen

Posts: 10917
Joined: Mon Jun 01, 2009 10:26 pm
Location: Charlotte, North Carolina

Re: My Other Rechargeable Gameboy Mods

by prfsnl_gmr Wed Feb 17, 2016 12:48 am

Those are rad.
User avatar
KalessinDB
Next-Gen

Posts: 2461
Joined: Tue Aug 28, 2012 7:07 pm

Re: My Other Rechargeable Gameboy Mods

by KalessinDB Wed Feb 17, 2016 1:19 am

Do want.

Backlit/bivert DMG + this rechargeable mod you've done = perfect DMG gameboy.
Gunning for a licensed NES NTSC-U set, follow the madness and poverty here!
Cheat sheet of my collection, always looking to increase it. 405/677 licensed games, 46/"95" unlicensed
Chronically out of date BST thread
User avatar
samsonlonghair
Next-Gen

Posts: 5188
Joined: Tue Feb 17, 2009 2:11 pm
Location: Now: Newport News, VA. Formerly: Richmond. Before that: Near the WV/VA border

Re: My Other Rechargeable Gameboy Mods

by samsonlonghair Wed Feb 17, 2016 7:00 am

Groovy. I dig that backlit orange translucent GBA.
User avatar
CRTGAMER
Next-Gen

Posts: 11933
Joined: Tue Jan 05, 2010 11:59 am
Location: Southern California

Re: My Other Rechargeable Gameboy Mods

by CRTGAMER Wed Feb 17, 2016 11:13 am

retroupgrade wrote:You guys are lame. I got no responses on my last post on this topic. Maybe you guys will like these better! :D BTW, fun fact: the DMG has and EL backlight. It's not bad if you don't mind the high pitch whine sound.

Perhaps Edit the OP
Great way to start a post. Suggest reduce pictures to 725 wide to speedup a page load and for a much easier read. You can also use the {attachment}20160202_100340 (1).jpg{/attachment} command which will automatically resize the pictures to a manageable view.

The mods look great, but maybe post the technical side showing how each Gameboy is modded with the chargeable batteries and the GBA brighter screen. Are the chargeable batteries common and easily replaceable when they eventually wear out? Have you found why the sound whines and is it all the portables or just one?
Last edited by CRTGAMER on Wed Feb 17, 2016 11:16 am, edited 1 time in total.
CRT vs LCD - Hardware Mods - HDAdvance - Custom Controllers - Game Storage - Wii Gamecube and other Guides:
CRTGAMER Guides in Board Guides Index: http://www.racketboy.com/forum/viewtopic.php?p=1109425#p1109425

User avatar
Ziggy587
Next-Gen

Posts: 12975
Joined: Mon Jun 09, 2008 5:12 pm
Location: NY

Re: My Other Rechargeable Gameboy Mods

by Ziggy587 Wed Feb 17, 2016 11:15 am

retroupgrade wrote:You guys are lame. I got no responses on my last post on this topic.


I didn't see your other thread, I definitely would have posted a thumbs up if I did!

So what kind of batteries are you using?

My Sale Thread - I am selling around three quarters of my video game collection as well as some other odds and ends!

I want to buy Universal Game Cases, if you have any spares please PM me! I'm looking to only deal with members that have good BST feedback on this forum.
ejamer
128-bit

Posts: 667
Joined: Wed Aug 05, 2009 5:00 pm

Re: My Other Rechargeable Gameboy Mods

by ejamer Wed Feb 17, 2016 12:30 pm

I don't get the need for a rechargeable mod (my preference has always been rechargeable AAs since they are cheap and easy to switch to a full pair with no delay when power runs out) but love the backlit GBA with orange case. Looks gorgeous.
retroupgrade
8-bit

Posts: 36
Joined: Fri Oct 30, 2015 9:17 pm

Re: My Other Rechargeable Gameboy Mods

by retroupgrade Wed Feb 17, 2016 9:35 pm

prfsnl_gmr wrote:Those are rad.


Thanks!!

KalessinDB wrote:Do want.

Backlit/bivert DMG + this rechargeable mod you've done = perfect DMG gameboy.


That's what I thought, too! The DMG is the right size, the backlit/bivert LCD is sharp, and the rechargeable battery saves batteries! I just miss the weight of the AAs a lil bit. I'll build one for you if you want. Just PM me. :D

samsonlonghair wrote:Groovy. I dig that backlit orange translucent GBA.

I looked at all the colors on eBay and this was my favorite.

CRTGAMER wrote:
retroupgrade wrote:You guys are lame. I got no responses on my last post on this topic. Maybe you guys will like these better! :D BTW, fun fact: the DMG has and EL backlight. It's not bad if you don't mind the high pitch whine sound.

Perhaps Edit the OP
Great way to start a post. Suggest reduce pictures to 725 wide to speedup a page load and for a much easier read. You can also use the {attachment}20160202_100340 (1).jpg{/attachment} command which will automatically resize the pictures to a manageable view.

The mods look great, but maybe post the technical side showing how each Gameboy is modded with the chargeable batteries and the GBA brighter screen. Are the chargeable batteries common and easily replaceable when they eventually wear out? Have you found why the sound whines and is it all the portables or just one?


Thanks for the posting tips! I re-sized the photos and 725 width looks much better. I just recently went through a big move and didn't have the time and resources to go through the technical side of things with photos, but I'd really like to go back and point out some details. I plan on following-up on that soon!

I used DSi batteries in the GBA and GB Pocket. I used a GBA SP battery in the DMG. I'd like to swap out the GBA SP battery (800mah) with something bigger, though. All batteries eventually wear out, but I'm comfortable enough with modding Game Boys that it wouldn't be a huge deal if a battery eventually failed on me. Also, I haven't had any Nintendo brand batteries fail on me yet!

The whine sound comes from the regulator board that is necessary for all electroluminescent panels. There is unfortunately no way to avoid the noise. But I can say that it isn't very noticeable after a few minutes with the sound on medium. The other Game Boys don't have EL backlights and therefore don't have the sound issue.

Ziggy587 wrote:
retroupgrade wrote:You guys are lame. I got no responses on my last post on this topic.


I didn't see your other thread, I definitely would have posted a thumbs up if I did!

So what kind of batteries are you using?


Thanks! See my previous reply for battery details.

ejamer wrote:I don't get the need for a rechargeable mod (my preference has always been rechargeable AAs since they are cheap and easy to switch to a full pair with no delay when power runs out) but love the backlit GBA with orange case. Looks gorgeous.

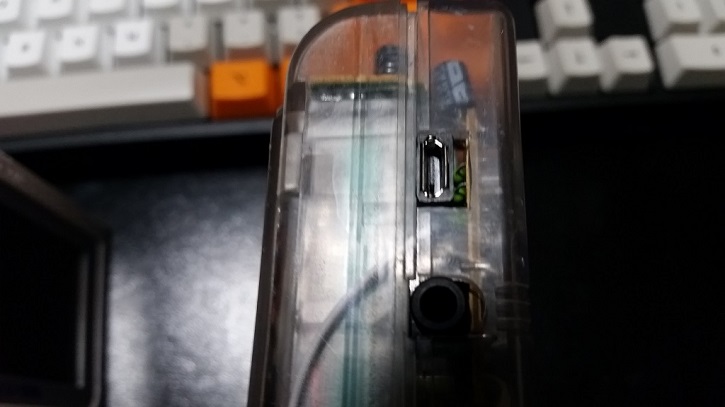

I strongly prefer rechargeable mods if I can charge with a micro USB cable. I have micro USB cables and USB ports everywhere in my house and my car for my phone, tablet, and other devices already. If my Li-Ion battery dies, I can plug in a cable and keep gaming. I don't know if every rechargeable mod works that way, though. However, I will say that I prefer the feel of the heavier alkaline batteries over the lighter Li-Ion batteries. Thanks for the compliment!
Attachments
crazysyd86
Newbie

Posts: 2
Joined: Wed Feb 03, 2016 9:48 pm

Re: My Other Rechargeable Gameboy Mods

by crazysyd86 Wed Feb 24, 2016 11:19 pm

Thanks for the info. I'm going to be doing a DMG build for my fiancée, and I was wondering if this is as simple as a direct solder from the battery terminals to the board contacts or if there's a resistor or something? Apologize as I'm a novice when it comes to electrical stuff.

Sent from my XT1096 using Tapatalk
User avatar
Glitch42
8-bit

Posts: 31
Joined: Sat Feb 20, 2016 5:45 am
Location: PAL

Re: My Other Rechargeable Gameboy Mods

by Glitch42 Fri Feb 26, 2016 10:35 am

I never saw the real need for rechargeable 'cause for me it's actually easier to pack a couple of AA batteries for the road rather than finding some place to charge it...

However, LOVE the backlit! Mine is so dull that it hurts my eyes! I actually have to have the sun right at my back to see it! Back in the day I didn't even know the map of Breath of Fire 2 was green until I got a DS! :)
